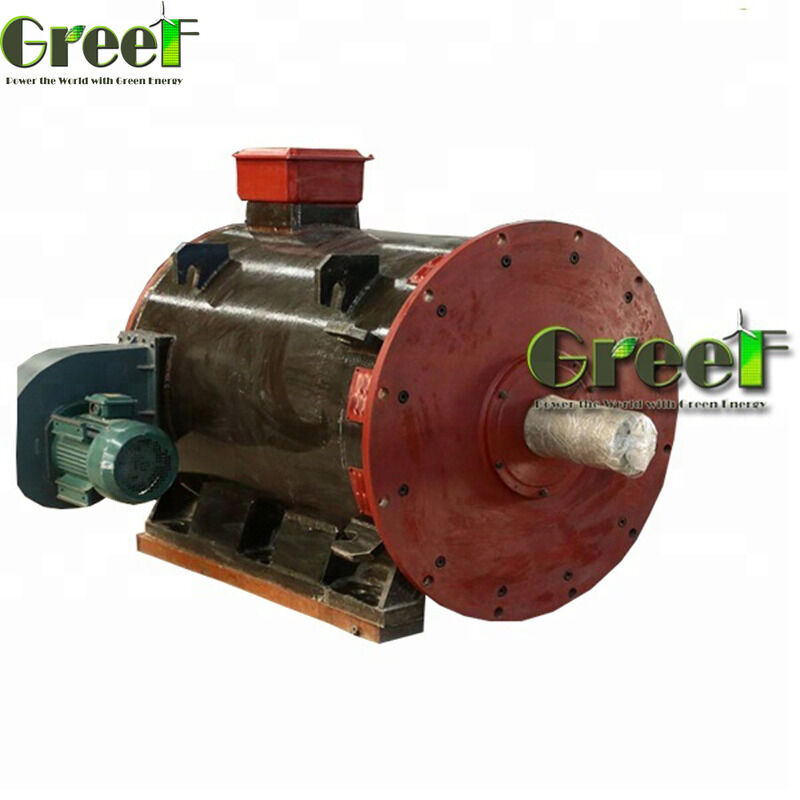

High Efficiency Greater Than 95% Permanent Magnet Motor with 0-8000 RPM and IP54 Classification

High Efficiency Greater Than 95% Permanent Magnet Motor with 0-8000 RPM and IP54 Classification

high efficiency permanent magnet motor

SKF bearing permanent magnet motor

long term stable torque motor

Marca:

Greef

Certificação:

CE

Model Number:

TYP

Contacte-nos
Solicite um orçamento
High Efficiency Greater Than 95% Permanent Magnet Motor with 0-8000 RPM and IP54 Classification
High Efficiency Greater Than 95% Permanent Magnet Motor with 0-8000 RPM and IP54 Classification
Detalhes do produto
Material do invólucro do gerador:
ferro fundido
Tipo de produto:
Motor
Tipo de gerador:
Motor síncrono AC de 3 fases
Classificação dos graus:
IP54
Grau de isolamento:
H
Tipo de motor:
Ímã Permanente
Resistência de isolamento:
100Mohm Min ((500Vdc)
Faixa de velocidade:
0-8000 RPM
Termos de pagamento e envio
Minimum Order Quantity
1Set
Preço
negotiable
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Termos de pagamento
T/T, Western Union, MoneyGram, L/C
Supply Ability
Supply Ability
PRODUTOS RELACIONADOS
Bom preço. Low Noise Operation High Efficiency Permanent Magnet Motor with Constant Torque for Electric Vehicles and Industrial Automation on-line vídeo

Low Noise Operation High Efficiency Permanent Magnet Motor with Constant Torque for Electric Vehicles and Industrial Automation

Obtenha o melhor preço
Bom preço. 6 Poles Permanent Magnet Motor with 0-8000 RPM Speed Range and IP54 Classification for Industrial Applications on-line vídeo

6 Poles Permanent Magnet Motor with 0-8000 RPM Speed Range and IP54 Classification for Industrial Applications

Obtenha o melhor preço
Bom preço. High Efficiency Greater Than 95% Permanent Magnet Motor with 0-8000 RPM and IP54 Classification on-line vídeo

High Efficiency Greater Than 95% Permanent Magnet Motor with 0-8000 RPM and IP54 Classification

Obtenha o melhor preço
Bom preço. IP54 Classification Permanent Magnet Motor with 0-8000 RPM Speed Range and High Efficiency for Industrial Applications on-line vídeo

IP54 Classification Permanent Magnet Motor with 0-8000 RPM Speed Range and High Efficiency for Industrial Applications

Obtenha o melhor preço
Contacte-nos
Contacte agora
Descrição do produto
High-Efficiency Permanent Magnet Motor
TYP magnet motors feature permanent magnet rotors that deliver enhanced efficiency and increased power density within the same frame size. These motors operate with frequency inverters to provide consistent torque across a wide speed range while maintaining high efficiency even at low speeds.
W21 magnet motors are specifically engineered for low-speed applications, operating with minimal noise levels and delivering significant energy savings for environments requiring quiet, efficient performance.
High Efficiency Greater Than 95% Permanent Magnet Motor with 0-8000 RPM and IP54 Classification 0 High Efficiency Greater Than 95% Permanent Magnet Motor with 0-8000 RPM and IP54 Classification 1
Key Features & Benefits
  • High Efficiency & Energy Savings: Saves up to 30% more energy than traditional induction motors, with efficiency maintained across 20-110% load range
  • Constant Torque Performance: Delivers consistent torque across wide speed range without forced ventilation
  • Extended Bearing Life: SKF bearings provide L10 lifespan up to 100,000 hours with grease nipples for easy maintenance
  • Advanced Magnet Technology: NdFeB rare-earth magnets with 18x greater magnetic strength than ferrite magnets
  • Integrated Thermal Protection: PTC thermistors embedded in windings protect against overheating
  • Synchronous Operation: Precise speed matching eliminates slip and rotor power loss
  • Low Operating Current: High torque/current ratio reduces stator current by 15-30%
  • Reduced Temperature Rise: 15-20°C lower temperature than comparable asynchronous motors
  • Cost Effective: Annual energy savings of approximately 9,000 RMB when replacing 37kW IE2 induction motors
Industrial Applications
TYP series high-efficiency permanent magnet frequency conversion synchronous motors are designed for diverse industrial applications requiring energy-saving features and reliable performance.
These motors are extensively used in injection molding machines, air compressors, pipe making equipment, hydraulic machinery, food processing machines, cement pipe manufacturing, plastic extruders, wire drawing machines, and pharmaceutical devices.
Customization Options
Greef offers customized TYP model 3-phase AC Synchronous Motor solutions with CE certification. Features include Insulate Grade H for high-temperature durability, low noise operation, and high efficiency performance.
Minimum order quantity: 1 set with negotiable pricing. Delivery time: 25 working days. Payment options include T/T, Western Union, MoneyGram, and L/C.
Packaging & Shipping
Each motor is securely packaged in custom-fitted foam within sturdy cardboard boxes for maximum protection. Environmentally friendly materials with clear labeling and handling instructions.
Shipping via reliable carriers with tracking options available. International shipments include complete customs documentation. Each unit undergoes final quality inspection before dispatch.
