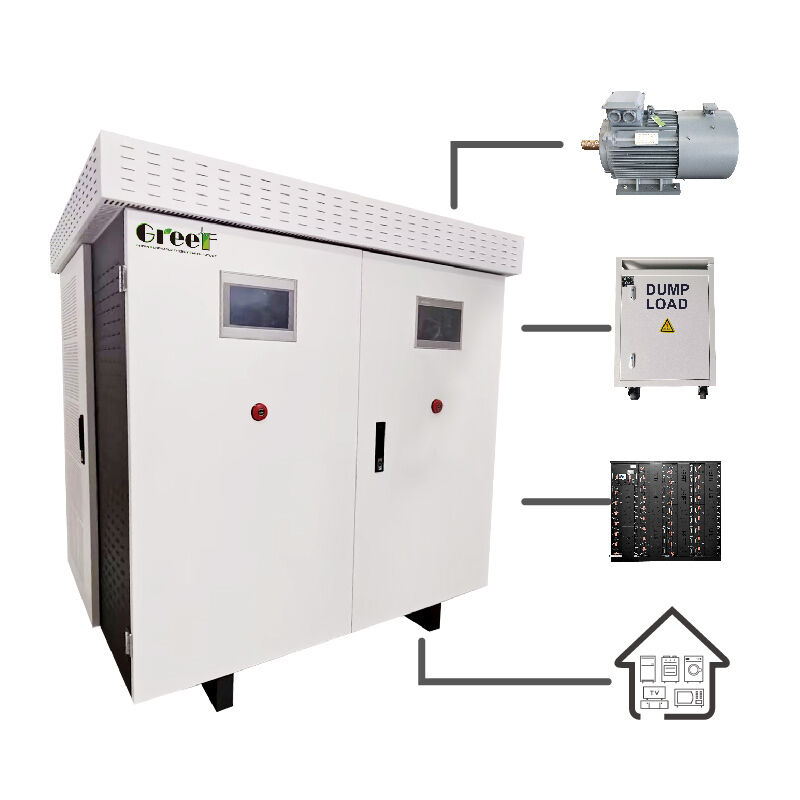

Name: On Grid Controller with 300 to 460 Volts Permissible Grid Voltage Range, 144 Amp Rated Charge Discharge Current, and WIFI Communication Mode for Solar Power Control
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Para casa > produtos > No controlador da grade >

On Grid Controller with 300 to 460 Volts Permissible Grid Voltage Range, 144 Amp Rated Charge Discharge Current, and WIFI Communication Mode for Solar Power Control

300 to 460 volts permissible grid voltage range On Grid Controller

144 amp rated charge discharge current Energy Management Controller

WIFI communication mode AC Generator-Battery Hybrid Converter

Marca:

Greef

Certificação:

Model Number:

AC PCS

Contacte-nos

Solicite um orçamento

On Grid Controller with 300 to 460 Volts Permissible Grid Voltage Range, 144 Amp Rated Charge Discharge Current, and WIFI Communication Mode for Solar Power Control

Detalhes do produto

Nível de proteção:

IP54

Consumo de energia em espera (W):

< 50

Topologia:

Retificador AC-DC, DC-DC Buck Boost, Inversor DC-AC.EMS

Mostrar:

Ecrã LCD sensível ao toque

Modo de comunicação:

Ethernet, RS485, Wi-Fi

Power nominal (KW):

100

Faixa de trabalho de tensão CA (Vac):

240 ~ 550

Tensão nominal da bateria (Vdc):

400

Termos de pagamento e envio

Minimum Order Quantity

1Set

Preço

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Termos de pagamento

T/T, Western Union, MoneyGram, L/C

Supply Ability

PRODUTOS RELACIONADOS

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Obtenha o melhor preço

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Obtenha o melhor preço

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Obtenha o melhor preço

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

Product Overview

The GREEF ENERGY multi-functional converter integrates multiple essential power management functions into a single, efficient system. Designed for industrial and renewable energy applications, this controller features a permissible grid voltage range of 300-460 volts, WIFI communication capabilities, and a 144 amp rated charge/discharge current for optimal solar power control.

Key Features

EMS Smart Energy Management System

Advanced energy management with configurable operating modes including off-grid, grid-tied, and grid charging options for versatile system integration.

Double LCD smart touch screen display for intuitive control and monitoring
Generator power curve tracking technology for optimized energy production
AC/DC dual backup for auxiliary power supply reliability
Unbalanced load control technology for stable operation
RS-485 Modbus RTU protocol for system integration
Optional PWM dump load for over-voltage and over-speed protection
Optional water gate motor control and WIFI/LAN remote monitoring
Customized sensor control support and Static Transfer Switch (STS) capability

Technical Specifications

Model	Mars-100kt
Rated Power	100 kW
Rated Voltage	≥ 320 Vac
Optimal Generator Voltage	450 Vac
AC Voltage Working Range	240 - 550 Vac
Maximum AC Current	180 A
Battery Type	Lithium-ion
Battery Voltage Range	350 - 450 Vdc
Rated Battery Voltage	400 Vdc
Max Charging/Discharging Current	250 A
Rated Charge/Discharge Current	144 A
Permissible Grid Voltage Range	300 - 460 V
Maximum Efficiency	95%

Electrical Performance

Total harmonic distortion below 3% at rated power, power factor exceeding 0.99, and 1.2x overload capacity sustainable for one minute.

Protection Features

Over voltage and speed protection (optional)
AC short-circuit protection
AC output overcurrent protection
Level 2 surge protection

Applications

This versatile converter serves multiple industrial and energy management applications:

Renewable Energy Systems: Integration with PMSG wind and hydro turbines
Off-Grid and Backup Power: Remote locations, cabins, telecom stations
Grid-Interactive Systems: Grid-tied operation with potential for feed-in
Industrial Power Management: Stable power for unbalanced loads with remote monitoring
Specialized Control: Water gate motor control and Static Transfer Switch applications

Customization & Ordering

CE-certified GREEF On Grid Controller (AC PCS) with touch screen display and remote control system. Features PWM unloading plus three-phase unloading system with lithium-ion battery support.

Minimum Order Quantity: 1 set
Delivery Time: 25 working days
Payment Methods: T/T, Western Union, MoneyGram, L/C

Packaging & Shipping

Securely packaged in eco-friendly cardboard with custom foam inserts. Includes user manual, installation accessories, and warranty card. Worldwide shipping with tracking and insurance options available. Processing time: 2-5 business days.
