Name: On Grid Controller with Rectifier Control and DC Output Functions for Wind Turbine Systems
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

Para casa > produtos > No controlador da grade >

On Grid Controller with Rectifier Control and DC Output Functions for Wind Turbine Systems

Rectifier Function On Grid Controller

Control Function Grid-Tied Controller

DC Output Function Wind Turbine Controller

Marca:

Greef

Certificação:

Model Number:

GT-PCTC Series Controller

Contacte-nos

Solicite um orçamento

Detalhes do produto

Relação de comunicação (opcional):

O sistema de transmissão de dados é um sistema de transmissão de dados que permite a transmissão de

Eficiência MPPT:

99,9%

Frequência de saída:

50Hz/60Hz

Voltagem constante PWM:

≥ 400dc, ≥ 700dc

monitoração da grade:

Sim

Função:

Rectificador, comando, saída de CC

Voltagem nominal da turbina eólica:

AC220V-600V

Grau de proteção:

IP20 (Interiores) IP65 (Exteriores)

Termos de pagamento e envio

Minimum Order Quantity

1Set

Preço

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Termos de pagamento

T/T, Western Union, MoneyGram, L/C

Supply Ability

PRODUTOS RELACIONADOS

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Obtenha o melhor preço

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Obtenha o melhor preço

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Obtenha o melhor preço

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

Grid Monitoring On Grid Controller PWM Constant Voltage of ≥700dc

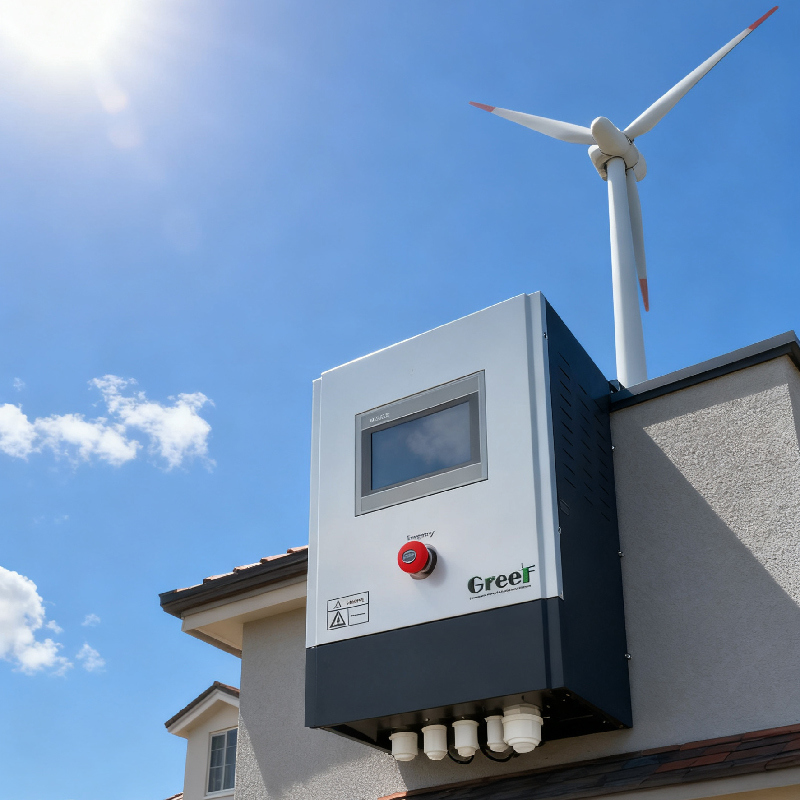

The GT-PCTC series grid-tied controller is a technologically advanced component for on-grid wind generator systems. It efficiently converts three-phase AC current from wind turbines into DC current before sending it to grid-tie inverters.

Key Features

Dual safety control systems: PWM constant voltage and three-phase dump load brake
Compatible with leading solar inverters (Growatt, Deye, Solis, Ivet)
LCD touch screen display with comprehensive monitoring capabilities
Multiple protection functions including over voltage and grid cut-off
Optional communication interfaces (RS485/USB/GPRS/WIFI/Ethernet)

Technical Specifications

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
PWM constant voltage	≥400dc		≥700dc
3-phase dump load time-lapse	12-20 min

Additional Specifications

Function: Rectifier, Control, DC output

Automatic protection: Over voltage, Grid cut off, Regulated supply output, Arrester

Manual functions: Manual brake, Reset, Emergency switch

Environment temperature: -30°C to 60°C

Relative humidity: <90% (No condensation)

Noise (1m): <40dB

Degree of protection: IP20 (Indoor) / IP65 (Outdoors)

Cooling method: Forced air cooling

Applications

Designed for grid-connected systems including wind power generation, hydroelectric power generation, and solar power generation applications.

Customization Options

Brand: Greef
Model: GT-PCTC Series Controller
Certification: CE
Minimum Order: 1 Set
Packaging: Foam + plywooden case
Delivery Time: 25 working days
Payment Options: T/T, Western Union, MoneyGram, L/C

Package Contents

On Grid Controller
User Manual
Mounting Hardware

Products are carefully packaged and typically shipped within 3-5 business days after order confirmation.
